HTPL solar pump controllers to run any electric three phase pump /motor

The HTPL Solar Pump controller (HT SPC) is designed to run any electric three phase submersible and mono block pump /motor. The HT SPC provides water in remote location by converting high solar DC output from solar PV panel into AC supply to run a standard AC/BLDC submersible or surface pump/motor. When solar power is not available, controller can be automatically or manually switched to an alternating single phase or three phase input supply.

The two range of solar pump controllers available are:

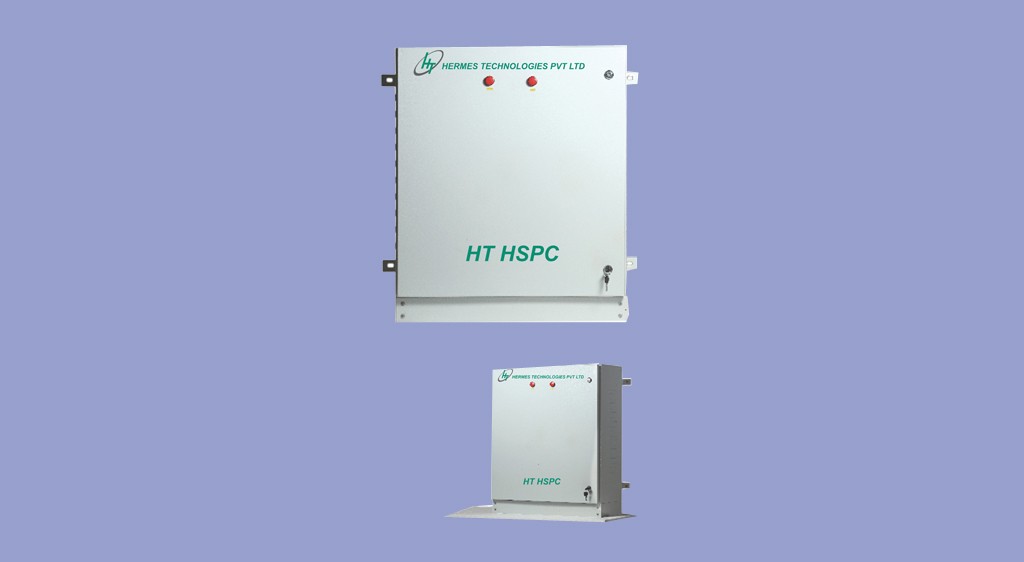

HTPL Hybrid solar pump controller – HT HSPC
• Solar pump controller cum grid connected inverter system in which pump runs on solar power only & access solar power feedback to grid
• Energy evacuation to the grid can be possible together with the pump operation
• Available for Ac/BLDC pump in all range
• Suitable for government’s Kusum Yojana

HT solar pump controller- HT SPC
• LCD display shows frequency, input DC voltage, output AC voltage, motor current, DC current, input power(kw), cumulative energy(kwh) and system status
• MPPT-Maximum power point tracking for maximizing the efficiency of input solar power
• Uses MPPT technology to maximize water delivery at various solar energy levels
• Soft start feature prevents water hammering and increase system life
• High flow system for faster tank fill and significant water output
• Simple installation and requires less maintenance
• Solar pump controller: optional features (AC/DC change over, grid sharing facility, BLDC solar pump controller, special voltage range controller and RMS facility)
• MNRE / TUV approved
• IP 54 / IP 65 option available for outdoor operation

HT solar pumping system applications
• Solar pump and motor (optional)
• HT solar pump controller (MPPT based)
• Solar panel (optional)
• Motor and controller rating available in the range of 1HP to 100HP
• Drinking water and tank filing
• Wild life and farms
• Rural water supply for villages and homesteads
• Irrigation system in agriculture
• Fountains

For more details, contact:
Hermes Technologies Pvt. Ltd.
B-84, GIDC, Sector-25,Electronics Estate,
Gandhinagar, Gujarat.
M: 079 23289082
TeleFax: 079 23287583
email: office@hermesdrives.com
