The compact and user-friendly insulation testers

Having a frontline global presence in electrical test and measurement equipment since 1940, Kyoritsu has expertise in low voltage test & measurement. In India, the company has been present for several decades, offering world-class products optimised for Indian needs at “just the right prices”. Many of these products have for long been the choice equipment of every Indian electrical installation professional.

Kyoritsu range of insulation testers features more than 20 diverse models, with test voltages ranging from 15V to 12KV, and analogue or digital indicators. Battery-powered, compact and user-friendly, each and every product is an industry standard today.

Kyoritsu has now launched industry’s 1KV insulation testers with PI/DAR + bluetooth/memory. They provide three model:
• KEW3551: Standard model
• KEW3552: With memory function
• KEW3552BT: With memory and Bluetooth communication functions

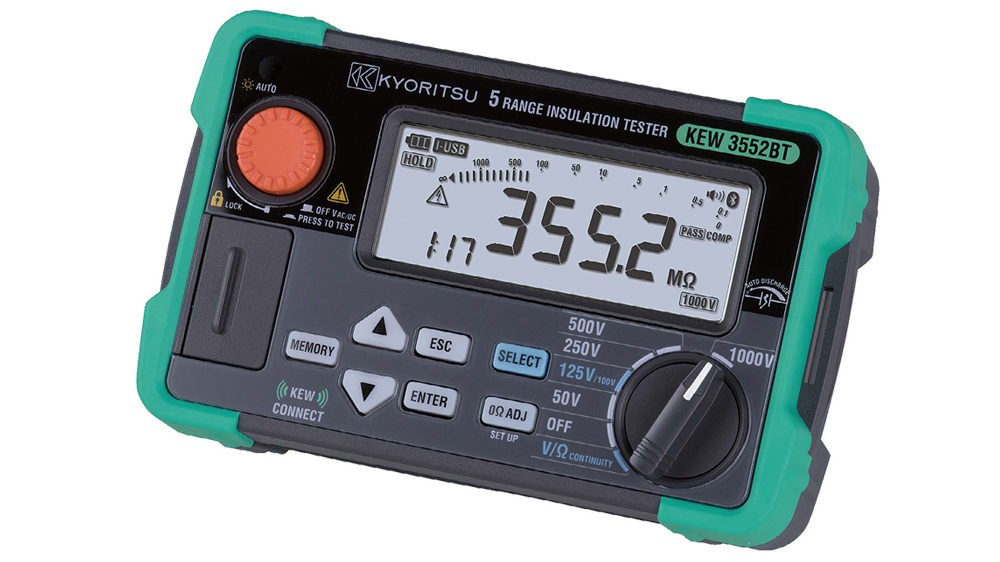

Key features of KEW 3552 BT are:
• World’s fastest measurement speed (0.5 sec.)
• Resistance test (50/100/125/250/500/1000 V); six ranges available for insulation
• Insulation measurement up to 40GO
• Diagnostic Insulation Test: PI, DAR

Other features of 3552 are:
• Short-circuit current up to 1.5mA
• Continuity test available 40.00/400.0/4000O
• It comes with a standard carry case and test leads with remote-control switch
• Large display with bar graph indication and backlight
• Live voltage warning
• Safety standard IEC61010 CAT 600V/CAT IV 300V IEC61557-1,2,4
• EMC standard: IEC61326-1,-2-2 IEC60529
• IP 40
• Bluetooth communication function available KEW 3552BT
• Memory function available for Kew 3552/3552BT
• Clock available on Kew 3552/3552BT
• Auto power off
• Automatically discharges electric charges stored in capacitive circuit when measurement is finished
• Voltage measurement AC /DC auto detection
• Zero O adjustment function
• Comes with elapsed time display
• Illuminance sensor detect ambient brightness and automatically turn ON and OFF light
• Hold function available
• Low battery indication

Kyoritsu products are readily available in India and have complete service and calibration support and setup too.

For more details, contact
Kyoritsu KEW India Instruments Pvt. Ltd.
#4, S P Nagar,
Navrangpura, Ahmedabad-380006.
T: 91 79-2640 9686 , M: 0 98246 80404
E-mail : info@kew-india.co.in,
Website: http://www.kew-ltd.co.in
