NMC’s automatic voltage regulatory relay

By EPR Magazine Editorial January 3, 2023 2:25 pm

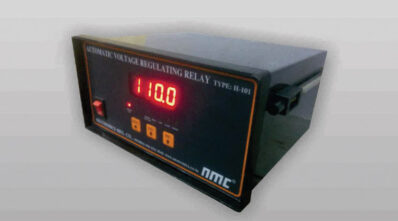

NMC’s automatic voltage regulatory relay
.

Mentioned are some of the features of Neutronic’s Features of AVR H-101 and AVR V-101

  • Digital readout for PT Supply and deadband settings
  • LED indication for raising lower presignals, Undervoltage, and control repay operation conditions.
  • It has continuously adjustable time delay settings
  • Automatic resetting after voltage correction
  • Single pulse operation of control relays
  • Undervoltage internal blocking
  • Universal power supply
  • Password protected
  • 4-20 mA O/P of P.T. Voltage for SCADA (optional).

Neutronic_EPR Magazine

Technical Specifications: (Product specifications are subject to change*)



Advertising

EPR Android App Banner

Auxiliary Supply: 95-265V AC/DC, 10VA or 110/230V AC 15% 50Hz, 10 VA



Control Relays: One pair of normally open potential free contacts of rating 5A at 240V AC or 24V DC resistive load for each Lower, Raise and Undervoltage control relay.



PT Supply: 110V AC 50Hz, 1.5VA and readable on display.



Control Operation: Single pulse operation with approximately 2 seconds on time.



Low Voltage settings (raise relay): Adjustable between 90V to 120V and readable on display



Operation Temperature: 0oC – 45oC



High Voltage Setting (Lower relay):  Adjustable between 95V to 140C and readable on display.



Time Delay Resetting: Instantaneous resetting with voltage returning to deadband



Time Delay Setting:  Fixed (voltage-independent), Time delay continuously adjustable from 10-180 seconds



Overall Dimension (H-101):92mm x 192mm x 110mm (H x W x D)



P.T. Calibration:  P.T. value difference can be adjusted from -10V to +10.0V



Panel Cutout (H-101):  90mm x 184mm (H x W)



Undervoltage Blocking: Internal blocking at 80V and restoration at 85V.



Weight (H-101): 1.5 kgs. (approximately)
Weight (V-101): 2.0 Kg. (Approximately).

For more details, contact NEUTRONICS MANUFACTURING CO.

Tel No: 022 2925 0745/2920 1296

Mobile No: 9819450890 / 9819070556

Email id: sales@neutronics.co.in, bhavin_nmc@yahoo.com, mehul@neutronics.co.in

Website: www.neutronics.co.in
