Bioenergy and its potential to reduce carbon emissions

By EPR Magazine Editorial November 15, 2024 2:46 pm

Bioenergy and its potential to reduce carbon emissions
.

Bioenergy is a renewable energy source derived from organic materials (biomass), including plants, agricultural residues, forestry by-products, and organic waste. It can be converted into energy through combustion, gasification, anaerobic digestion, and fermentation, serving multiple purposes such as heating, electricity generation, and transportation fuels. As the world seeks to transition from fossil fuels, bioenergy offers a consistent, sustainable energy source that complements intermittent renewables like solar and wind.

ABSTRACT: Bioenergy is a form of renewable energy derived from organic materials, known as biomass, which include plants, agricultural residues, forestry by-products, and organic waste. The energy is produced through various processes such as combustion, gasification, anaerobic digestion, and fermentation. Bioenergy is a versatile energy source that can be used for heating, electricity generation, and as transportation fuels.

The importance of bioenergy in the context of renewable energy cannot be overstated. As the world grapples with the pressing need to transition from fossil fuels to sustainable energy sources, bioenergy offers a promising solution. It provides a way to utilize waste materials and sustainably manage natural resources while producing energy. Unlike intermittent renewable sources such as solar and wind, bioenergy can offer a more consistent and reliable energy supply, making it an essential component of a diversified renewable energy portfolio.

This paper aims to assess the potential of bioenergy in reducing carbon emissions. It provides a comprehensive overview of bioenergy, including its types, sources, and conversion technologies. Further it discusses future prospects and emerging trends in bioenergy.

1.0 INTRODUCTION

One of the most pressing issues of our time is the increasing concentration of carbon dioxide (CO2) and other greenhouse gases (GHGs) in the atmosphere, leading to global warming and climate change. The burning of fossil fuels for energy is a major contributor to these emissions, driving the urgent need for alternative, low-carbon energy sources.

Climate change poses significant risks to ecosystems, human health, and economies worldwide. The rising global temperatures, extreme weather events, sea level rise, and loss of biodiversity are some of the catastrophic consequences already being witnessed. Addressing carbon emissions is critical to mitigating these impacts and achieving global climate goals.

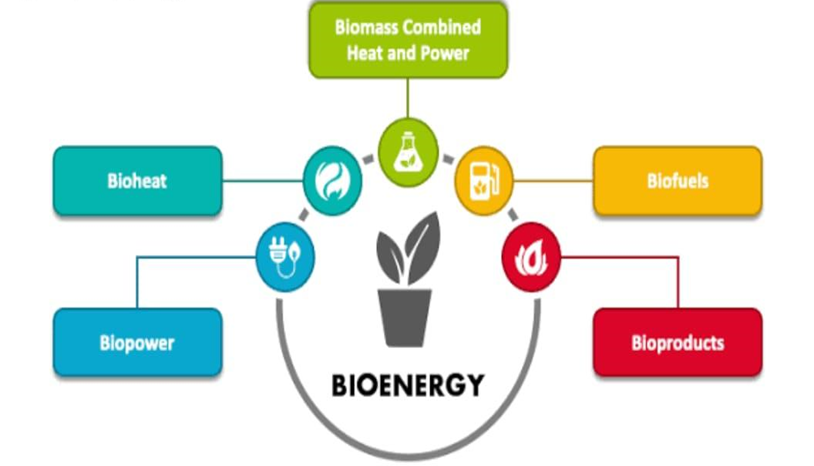

Fig.2 TYPES OF BIO ENERGY

Bioenergy refers to the energy derived from biological sources, known as biomass. Biomass is any organic material that comes from plants, animals, or microorganisms. Bioenergy is considered renewable because its sources, such as plants and organic waste, can be replenished through natural processes or agricultural practices. Unlike fossil fuels, which take millions of years to form, biomass can be regenerated relatively quickly.

The details of total power generation in India and contribution of various sources with respect to total generation are given in the table 1, 2 3 4 & 5 respectively.

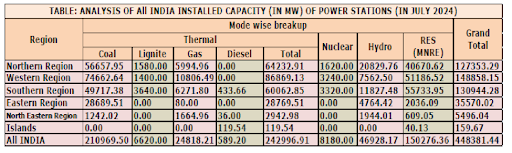

TABLE 1 TOTAL GENERATION DATA FOR JULY 2024

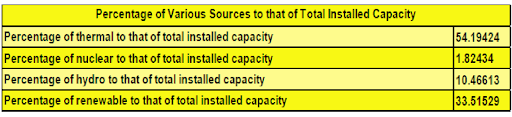

  TABLE 2 PERCENTAGE OF VARIOUS SOURCES IN TOTAL GENERATION

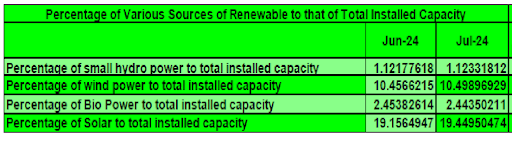

 TABLE 3 PERCENTAGE OF RE SOURCES IN TOTAL GENERATION

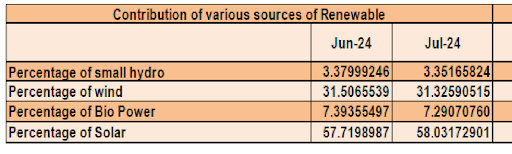

      TABLE 4 PERCENTAGE OF VARIOUS SOURCES OF RE

Advertising

EPR Android App Banner

           TABLE 5 GENERATION DATA OF VARIOUS SOURCES OF RE

BIOENERGY & SOURCES OF BIOENERGY
BIOFUELS: A) Liquid Biofuels: These include ethanol and biodiesel, which are used primarily as transportation fuels. Ethanol is produced from fermenting sugars and starches from crops like corn and sugarcane, while biodiesel is made from vegetable oils, animal fats, or recycled cooking grease.
B) Gaseous Biofuels: These include biogas and syngas. Biogas is produced through the anaerobic digestion of organic matter by bacteria, resulting in a mixture of methane and carbon dioxide. Syngas, a mixture of hydrogen and carbon monoxide, is produced through the gasification of biomass at high temperatures. It can be used for heating, electricity generation, and as a vehicle fuel. (Refer figure 3)

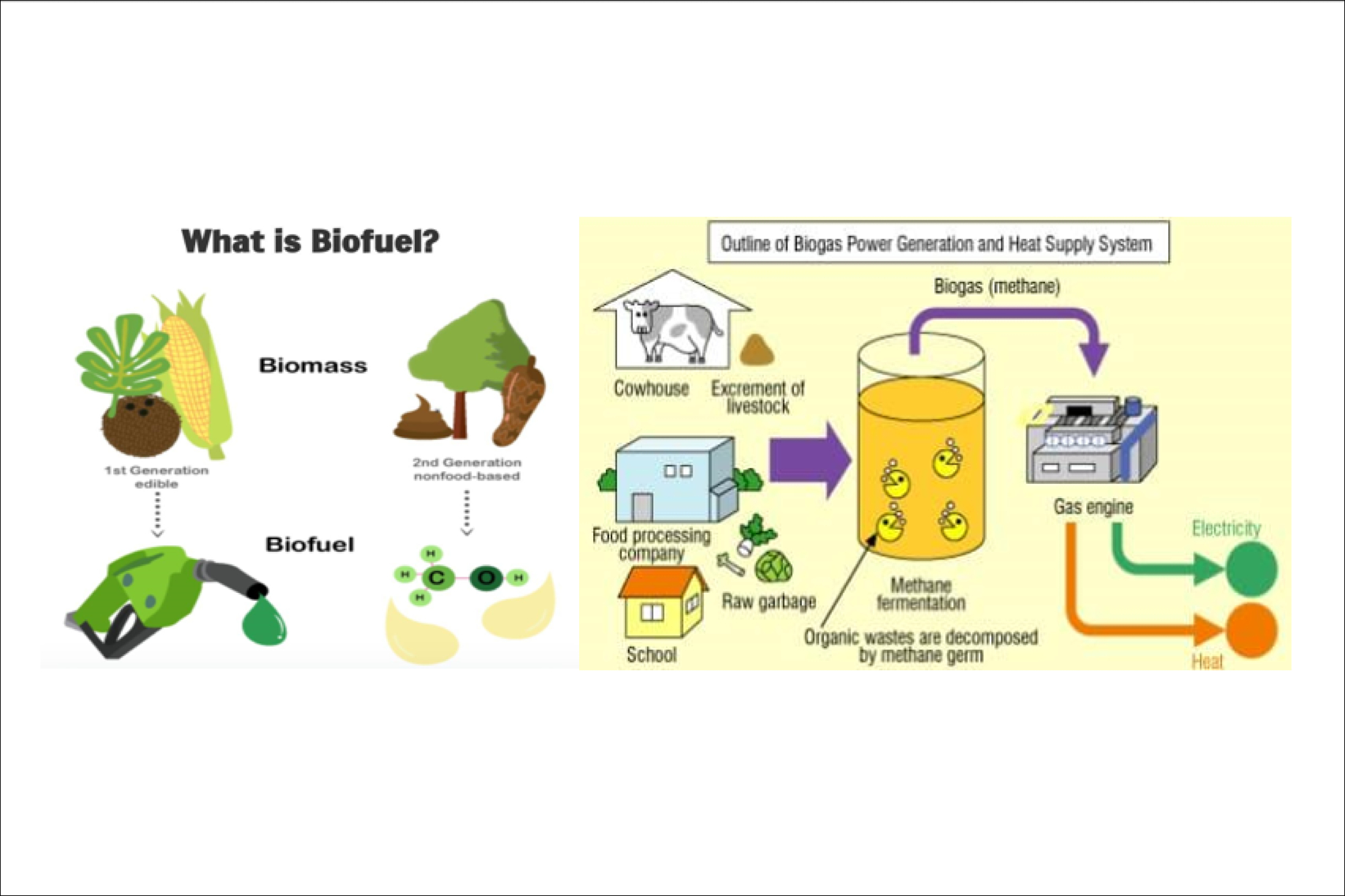

FIG.3 BIO FUEL (LIQUID AND GAS)

2) Biomass: Biomass refers to organic materials like wood, agricultural residues, and dedicated energy crops that can be burned or converted into other forms of energy. It is used for heating, electricity generation, and as a raw material for biofuels. (Refer figure 4)

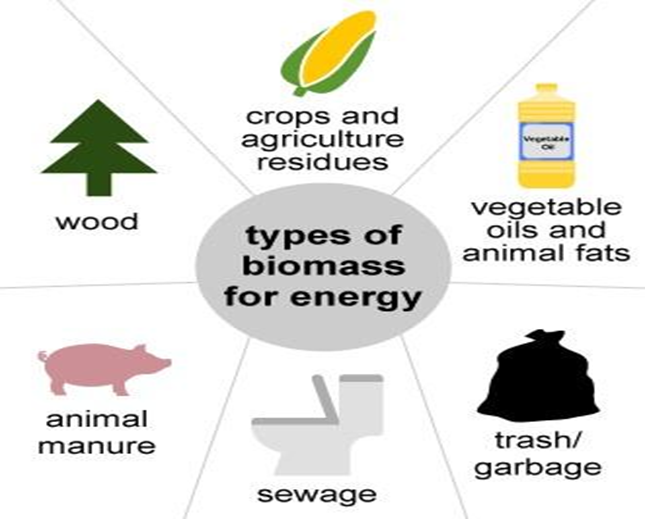

   Fig.4 TYPES OF BIO MASS ENERGY

2.1 SOURCES OF BIOENERGY

Bioenergy can be derived from various sources, which are broadly categorized as follows:

  1. Agricultural Residues: These include crop residues such as straw, husks, and stalks left after harvesting. They are abundant and can be used as a feedstock for bioenergy production without competing with food production.
  2. Forestry By-products: This category includes wood chips, sawdust, and other residues from forestry operations. They are often used in the production of wood pellets for heating and electricity generation.
  3. Organic Waste: Organic waste encompasses municipal solid waste, food waste, and sewage sludge. These materials can be processed to produce biogas or used as feedstock for biofuel production.
  4. Dedicated Energy Crops: Energy crops are specifically grown for bioenergy production. Examples include switch grass, miscanthus, and willow. These crops are selected for their high yield and suitability for conversion into biofuels or biogas.
  5. Algal Biomass: Algae can be cultivated in ponds or photo bioreactors and converted into biofuels. Algal biomass has a high growth rate and can produce large quantities of oil suitable for biodiesel production. (Refer figure 5)

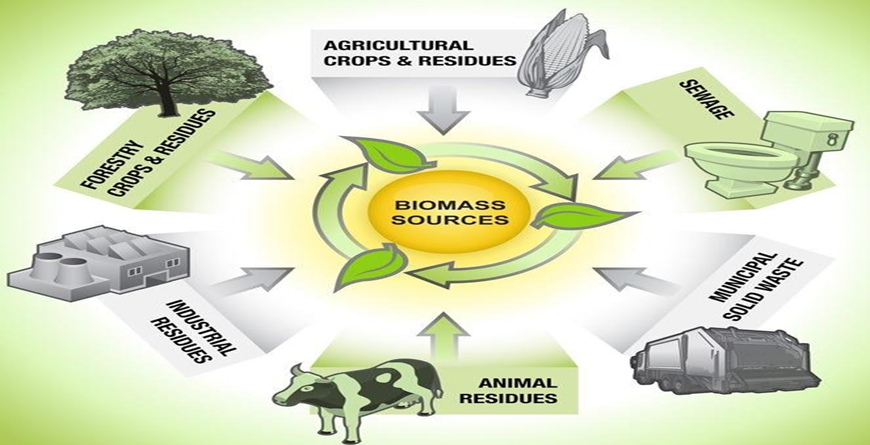

                             Fig.5 DIFFERENT SOURCES OF BIO ENERGY

3.0 BIOENERGY CONVERSION TECHNOLOGIES

The conversion of biomass into usable energy involves several technologies, each suited to different types of feedstock and end uses:

  1. Combustion: Combustion is the direct burning of biomass to produce heat, which can be used for heating or to generate electricity through steam turbines. Common feedstocks for combustion include wood chips, pellets, and agricultural residues.
  2. Gasification: Gasification involves heating biomass at high temperatures in an oxygen-limited environment to produce syngas (a mixture of carbon monoxide, hydrogen, and carbon dioxide). Syngas can be used to generate electricity, produce biofuels, or serve as a chemical feedstock.
  3. Anaerobic Digestion: Anaerobic digestion is a biological process where microorganisms break down organic matter in the absence of oxygen, producing biogas (mainly methane and carbon dioxide) and digestate (a nutrient-rich residue). Biogas can be used for heating, electricity generation, or as a vehicle fuel.

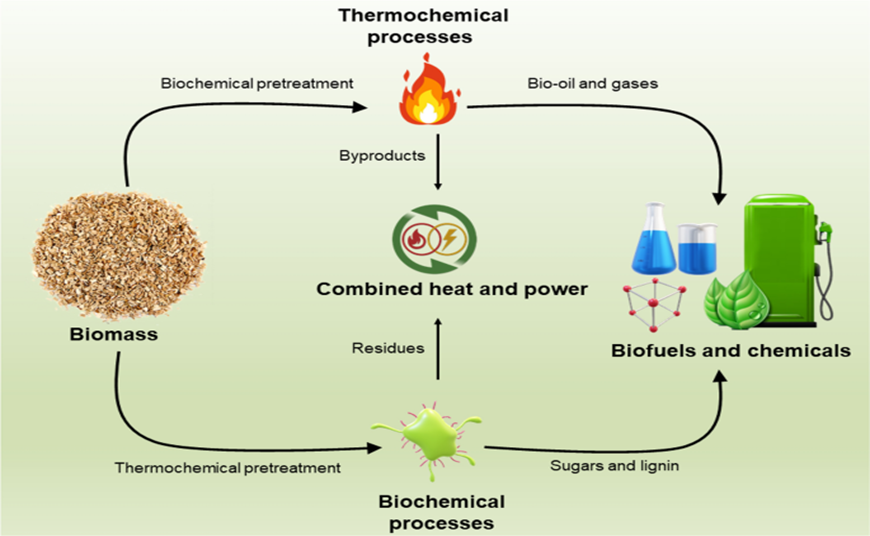

                         Fig.6 BIO ENERGY PRODUCTION PROCESSES

Fermentation: Fermentation is the biochemical process of converting sugars and starches into ethanol using yeast or bacteria. This process is commonly used to produce ethanol from crops like corn and sugarcane.
Transesterification: Transesterification is the chemical process used to produce biodiesel from vegetable oils or animal fats. This involves reacting the oil or fat with an alcohol (usually methanol) in the presence of a catalyst to produce biodiesel and glycerin.
Pyrolysis: Pyrolysis involves the thermal decomposition of biomass in the absence of oxygen to produce bio-oil, syngas, and biochar. Bio-oil can be further refined into transportation fuels, while biochar (porous carbonaceous solid) can be used as a soil amendment.
These technologies are integral to harnessing the energy potential of biomass and converting it into forms that can be easily stored, transported, and used. Each technology has its advantages and limitations, and the choice of technology often depends on the type of biomass available and the intended end use of the bioenergy produced. (Refer figure 6)
4.0 BIOENERGY LIFECYCLE ANALYSIS AND CARBON EMISSIONS
Lifecycle Analysis (LCA) is a systematic method used to evaluate the environmental impacts associated with all stages of a product’s life, from raw material extraction (cradle) to disposal (grave). In the context of bioenergy, LCA assesses the total greenhouse gas emissions generated throughout the lifecycle of bioenergy production and use.
4.1 Stages of LCA for Bioenergy:
Feedstock Production: This stage includes the cultivation of biomass feedstocks, such as crops or algae. It considers emissions from land use changes, soil management, fertilizers, pesticides, and energy used in planting, irrigation, and harvesting.
Feedstock Transportation: Biomass must be transported from the production site to the processing facility. This stage includes emissions from the fuel used in transportation vehicles.
Conversion Process: This involves converting biomass into bioenergy through processes like combustion, gasification, anaerobic digestion, or fermentation. Emissions from energy use and chemical inputs during these processes are accounted for.
Energy Distribution: The bioenergy produced must be transported to end-users. This stage includes emissions from the transportation and distribution infrastructure.
End-Use: This stage considers the emissions generated when the bioenergy is used, such as burning biofuels in engines or using biogas for heating.
Waste Management: Disposal or recycling of by-products and waste generated throughout the lifecycle. This includes emissions from waste processing and potential methane emissions from organic waste decomposition.
LCA is crucial in assessing the overall environmental benefits of bioenergy. By considering all stages of the lifecycle, LCA provides a comprehensive view of the total carbon emissions associated with bioenergy production and use. This helps in comparing the environmental impact of bioenergy with other energy sources and identifying areas where emissions can be reduced.
4.2 Carbon Sequestration
Carbon sequestration refers to the process of capturing and storing atmospheric carbon dioxide (CO2). Bioenergy crops can sequester carbon during their growth phase, contributing to the reduction of overall carbon emissions.


How Bioenergy Crops Sequester Carbon:
Photosynthesis: During photosynthesis, plants absorb CO2 from the atmosphere and convert it into biomass (plant material). This process effectively removes CO2 from the air and stores it in the plant tissues.
Soil Carbon Storage: Bioenergy crops, particularly perennials like switchgrass and miscanthus, have extensive root systems that contribute to soil carbon storage. The carbon captured in plant roots and decaying plant material adds to the organic carbon content of the soil, which can remain stored for long periods.
Carbon Retention in By-products: Some bioenergy processes, like pyrolysis, produce biochar as a by-product. Biochar is a stable form of carbon that can be applied to soils, enhancing soil fertility and retaining carbon in a stable form for centuries.
4.3 Impact on Carbon Balance: The carbon sequestration potential of bioenergy crops plays a significant role in offsetting the emissions generated during other stages of the bioenergy lifecycle. By sequestering carbon during their growth, these crops help to create a more favorable carbon balance, making bioenergy a more sustainable and low-carbon energy source.
Emission Reduction Potential-Comparison with Fossil Fuels:
Bioenergy has significant potential to reduce carbon emissions compared to fossil fuels. The key factors contributing to this potential are:
Renewable Feedstock: Unlike fossil fuels, which release carbon that has been stored underground for millions of years, bioenergy uses renewable feedstocks that can be replenished. This creates a closed carbon cycle, where the carbon released during bioenergy use is offset by the carbon absorbed during feedstock growth.
Lower Lifecycle Emissions: LCA studies often show that bioenergy systems have lower lifecycle emissions than fossil fuel systems. This is because bioenergy production can utilize waste materials, reduce methane emissions from waste decomposition, and sequester carbon in biomass and soils.
Technological Advancements: Innovations in bioenergy conversion technologies, such as advanced biofuels and biogas upgrading, enhance the efficiency of bioenergy systems, further reducing their carbon footprint.

4.4 Quantifying Emission Reduction:
Studies have shown that biofuels like ethanol and biodiesel can reduce greenhouse gas emissions by up to 50-90% compared to conventional gasoline and diesel, depending on the feedstock and production process used. Biogas production from anaerobic digestion of organic waste can result in substantial emissions reductions. When used to replace fossil fuels for heating or electricity generation, biogas can reduce emissions by up to 80-90%.Using biomass for electricity generation can reduce emissions by 50-75% compared to coal, especially when using sustainable feedstocks and efficient combustion technologies.
The potential of bioenergy to reduce carbon emissions is significant, but it varies depending on the feedstock, conversion technology, and lifecycle emissions. By carefully selecting sustainable feedstocks, optimizing conversion processes, and implementing best practices in feedstock production and waste management, bioenergy can play a crucial role in the global effort to reduce carbon emissions and combat climate change.
5.0 FUTURE PROSPECTS OF BIOENERGY
Integration with Other Renewable Energy Sources: Bioenergy is increasingly being integrated with other renewable energy sources such as solar and wind. This hybrid approach can enhance energy reliability and stability.
Advancement in Biomass Conversion Technologies: Research is focused on improving biomass conversion technologies, including more efficient methods for converting biomass into biofuels, biogas, and biochar. Innovations in thermochemical and biochemical conversion processes, such as gasification and hydrothermal liquefaction, are making biomass conversion more efficient and cost-effective.
Increased Use of Agricultural Residues:  Utilization of agricultural residues and waste products for bioenergy is gaining traction, reducing waste and improving resource efficiency.
Potential Innovations in India
Enhanced Biomass Gasification Technologies: Development of advanced biomass gasification technologies that offer higher efficiency and lower emissions. Improved gasification systems can provide cleaner and more efficient energy production from biomass, enhancing the overall sustainability of bioenergy projects.
Bioenergy with Carbon Capture and Storage (BECCS): Integration of carbon capture and storage technologies with bioenergy production to capture CO2 emissions and store them underground. BECCS can significantly reduce net carbon emissions from bioenergy systems, contributing to climate change mitigation efforts.
Biomass-Based Hydrogen Production: Use of biomass for hydrogen production through processes such as gasification and steam reforming. Biomass-based hydrogen offers a renewable alternative to fossil fuel-based hydrogen and can be used in fuel cells for clean energy applications.
5.2 Long-Term Vision in India
Achieving Energy Independence: To achieve greater energy independence by expanding the use of bioenergy and reducing reliance on imported fossil fuels. Investment in bioenergy infrastructure, development of advanced biofuel technologies, and promotion of domestic bioenergy feedstock production.
Promoting Sustainable Agriculture: To promote sustainable agricultural practices by integrating bioenergy systems that utilize agricultural residues and by-products. Encouragement of practices such as crop residue management, use of biochar as a soil amendment, and support for sustainable farming methods.
Supporting Rural Development: To support rural development through the establishment of bioenergy projects that create job opportunities and improve local economies. Development of small-scale bioenergy projects, provision of training and capacity-building programs, and creation of incentives for rural bioenergy enterprises.
.
6.0 CONCLUSION
1. The study reveals significant advancements in bioenergy technologies, including improved biomass conversion processes (such as gasification and pyrolysis), more efficient biogas production methods, and the development of advanced biofuels like cellulosic ethanol and algal biofuels.
Bioenergy contributes to waste management, improves soil health through the use of by-products, and reduces greenhouse gas emissions compared to fossil fuels. However, sustainability concerns, such as land use changes and competition with food production, must be addressed.
Emerging trends in bioenergy include advancements in biomass conversion technologies, the development of algae-based biofuels, and the adoption of circular economy models. These trends indicate a growing potential for bioenergy to play a larger role in the global energy mix.
Innovations such as biomass-based hydrogen production, BECCS, and smart grid integration are poised to enhance the sustainability and efficiency of bioenergy systems. The long-term vision involves achieving greater energy independence, promoting sustainable agriculture, and advancing global carbon neutrality goals.
Bioenergy has the potential to make a significant impact on reducing carbon emissions and supporting global climate goals. Its ability to utilize renewable resources and provide economic and environmental benefits positions it as a key component of a sustainable energy future.
In simple words, bioenergy presents a promising pathway for reducing carbon emissions and contributing to a sustainable energy future. By addressing current challenges and leveraging emerging trends and innovations, bioenergy can play a pivotal role in mitigating climate change and supporting global environmental goals.


 Authored by : DIVYANSHU ARORA, Dr. RAJESH KUMAR ARORA
