Digital meters and multifunctional analysers by KUSAM MECO

By December 5, 2021 11:17 am IST

Digital meters and multifunctional analysers by KUSAM MECO
.

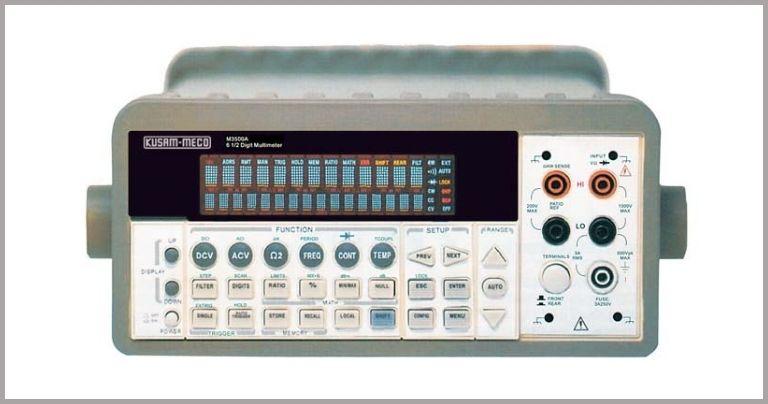

Ultra-High Precision 6 ½ Digit Bench Top Digital Multimeter

“KUSAM-MECO” has introduced a new Ultra High Precision 6½ Digit (Bench Top) Digital Multimeter Model M3500A. This meter has 11 Measurements, 8 Math Functions and 25 ranges. It has 5 x 7 dot matrix VFD dual display with three color annunciators. It’s optionally provided with Matlab and Lab view applications that allows user to do a variety of tasks. It features the PT – Tool that can acquire data directly from the measurement into MS WORD or EXCEL. Even without MS WORD or EXCEL, user can choose the PT-Link, which is a stand-alone application. High-speed sampling rate and data rate are at 2000 readings/sec (At 4½ digit setting). High capacity of internal data memory which stores up to 2000 readings. The DMM supports two methods for Temperature Measurements: – Thermocouples and RTDs. For thermocouples, it supports up to 7 types of sensors: E, J, K, N, R, S and T. High Accuracy for DC Voltage is ± 0.0015 percent of reading and AC Voltage is ± 0.04 percent of reading. AC Measurement Range is from 3Hz to 300KHz.

It measures AC RMS Voltage from 100.0000mV to 750.000V, AC RMS Current Range: 1.000000A, 3.00000A. DC Voltage from 100.0000mV to 1000.000V, DC Current from 10.00000mA to 3.00000A. Resistance from 100.0000Ω to 100.0000MΩ. Frequency and period range is from 100mV to 750V (3Hz to 300KHz). Diode Test range is 1.0000V and Continuity Test range is 1000.000 Ω.. It operates on 230V AC.

Multifunction Power & Harmonics Analyzer

Model KM-2300 is a new Class “A” Power Quality Analyzer introduced by “KUSAM-MECO”, an ISO 9001-2015 certified company. This Power Quality Analyzer has an Auto Power off and LCD Backlight display function. It has safety features CAT III 1000V / CAT IV 600V and standards IEC610191, IEC61000-4-30A Class. It can be easily operated to capture the power quality problem. It can be used in Single-phase 2W / Single-phase 3W / 3-phase 3W / 3-phase 4W system. It displays Run Chart, Bar Chart, Vector Graphic, Waveform, Event List, Readings&32G Memory Card to Make the long-term measuring data storage. It support USB port to connect to PC and analyze the data / screen shots copied by U-disk & also supports LAN port to make the remote control available, transfer the measuring data. Also Supported WIFI, GPS communication.

It measures Voltage range (0~1000Vrms), Current range (1~3000Arms), Frequency range (42.5~57.5Hz & 51~69Hz), Harmonics range (0~50). It can also measure Active power range (1.0~20M Ohm), Apparent power range (1.0~20MOhm), Reactive power range (1.0~20MOhm), Power factor range (0~1), Energy (0kWh~200GWh), DIPS & SWELLS range (0~200 percent for Vrms/Arms) with Programmable threshold in percent of nominal voltage Event detection based upon ½ cycle rms voltages Captures Dips, Swells Interruptions and Rapid Voltage Changes. This model has Data Logger function, System monitor (Record time up to 7 days & Record Event number >10000). It has adapter input AC 220V (1±10 percent), 50Hz (1 ± 5 percent), ≤ 10VA.

Advertising

EPR Android App Banner

For details, contact:

KUSAM ELECTRICAL INDUSTRIES LTD.

Shop no.18, 1st Floor, CIDCO Shopping Complex, Plot # 9, Sector-7, Rajiv Gandhi Marg, Sanpada, Navi Mumbai – 400705.

TEL- 022- 27754546, 27750662, 27750292

Email: sales@kusam-meco.co.in

Website: www.kusamelectrical.com
