How to do power equipment inspection efficiently?

Iray’s T series handheld thermal camera can fully meet all needs of multi-scenario applications such as power transmission, substation, and distribution.

With the rapid development of the power industry, the electricity load is increasing year by year, and the thermal defects of power distribution equipment are gradually increasing. The development of electrical fires has been on the rise, which seriously affects the safety of power supply. Preventing the occurrence of electrical fires and reducing electrical fire losses have become a topic of common concern to fire supervision departments and all sectors of society.

The traditional power inspection method has low temperature measurement accuracy, cannot comprehensively display the overall temperature distribution of power equipment, has low inspection efficiency, and has problems such as undetected abnormal conditions. Thermal cameras can intuitively and accurately find abnormal hot spots of power distribution equipment, eliminate hidden troubles in time, and provide effective guarantees for the safe operation of power distribution equipment.

Distribution transformers are an important part of the distribution network. Overheating and failure of the transformers will affect the normal power supply and the maintenance costs are very high. Thermal camera helps to quickly locate the overheating position of the transformer, and find hidden dangers such as loose joints, overheating of bushings, poor contact, and overload, which is convenient for staff to repair faults in time.

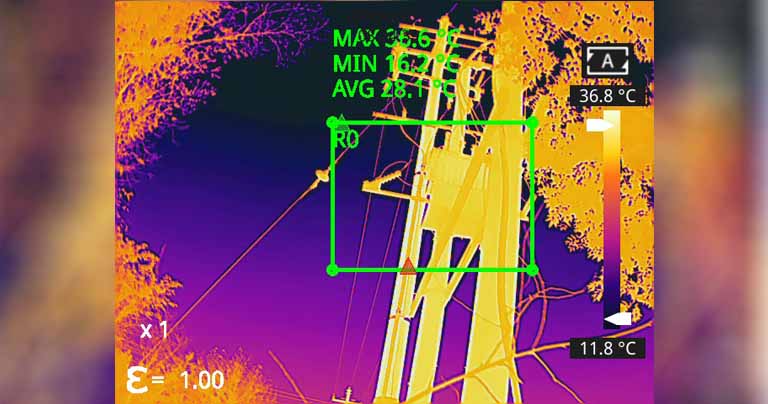

Distribution lines are an important part of the power system and are used for important tasks of power transmission and distribution. Using the thermal camera to detect the surface temperature of equipment such as wire clips, transformers, circuit breakers, isolating switches to determine whether there is an overheating fault in the power line equipment, improve the quality of operation and detection accuracy of power line to ensure the safety and long-term operation of the transmission line.

Iray provides T series handheld thermal camera for the power industry, with 384×288 / 640×512 high infrared resolution, optional from wide-angle to telephoto multi-lens, fully automatic focusing system, up to 2000℃ optional extended temperature range.

T series handheld thermal camera can fully meet all needs of multi-scenario applications such as power transmission, substation, and distribution.

• It has the characteristics of non-contact temperature measurement to ensure the personal safety of inspection personnel.
• With professional temperature measurement tools, you can freely select the monitoring temperature area, automatically obtain the highest temperature point, add temperature difference analysis and isotherm analysis, automatically calculate the temperature difference between two points, and realise intelligent shooting and intelligent fault diagnosis of the equipment.
• It supports the settings of temperature threshold, sampling interval, etc., realises automatic data collection and generates curves, and provides a reference for formulating electric power maintenance plans.
• It supports the high and low temperature warning alarm function in the temperature measurement area, finds the fault of the power equipment in time, and helps the staff to eliminate the hidden danger of power safety.
• Provide 4G card slot, support WIFI direct connection, you can remotely view the scene situation in real time through mobile phone or PC software, cooperate with the operator to analyse and diagnose, make the operation and maintenance more efficient.

For more details about Infiray, visit – www.infiray.com Contact E-mail: songyangjiang@iraytek.com Sales Enquiry: sales@infiray.com
